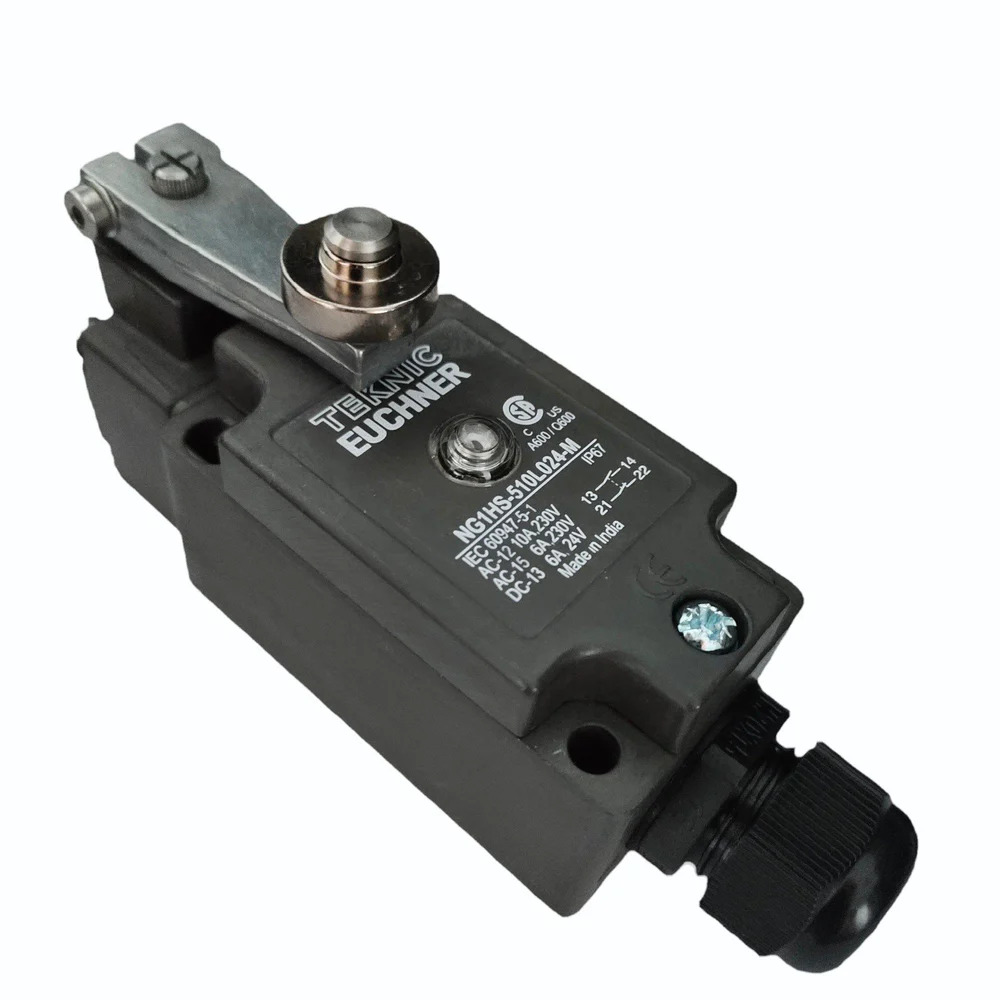

TEKNIC NG1HS 510L024M

Name: TEKNIC NG1HS 510L024M
Brand: MONIKA ENGINEERS
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TEKNIC NG1HS 510L024M Specification

Wireless
No

Application
CNC Machines, Automation Panels, Conveyor Systems

Mounting Type
Panel / Surface Mount

Features
Snap Action Mechanism, Weatherproof, Long Life

IP Rating
IP67

Sensor Type
Plunger Type

Operating Temperature
-25C to +70C

Sensitivity
High (Low actuation force required)

Response Time
Instantaneous (Mechanical)

Power Consumption
Negligible (Passive Device)

Measurement Range
Plunger Travel: Approx. 10 mm

Cable Length
Usually supplied without cable, with screw terminals

Signal Type
Mechanical to Electrical (Contact Closure)

Interface
Screw Terminal

Material
Metal / Thermoplastic

Input
24V

Output
SPDT 1NO + 1NC (Snap Action)

Function
Position Sensing / Limit Switching

Usage
Industrial Automation

Accuracy
High

Resolution
Discrete/Contact (On/Off)

Voltage
24V Volt (v)

Weight
Approx. 110g

Rated Frequency
50/60 Hz

Model Number
NG1HS 510L024M

Contact Rating
10A @ 500V AC Resistive Load

Operation Life
Over 10 Million Operations

Actuator Type
Spring Plunger

Body Dimensions
Approx. 31 x 60 x 32 mm

Vibration Resistance
10-55 Hz, 1.5 mm amplitude

Contact Resistance
< 25 mOhms

Insulation Resistance
> 100 MOhms @ 500V DC

Enclosure Material
Reinforced Thermoplastic / Metal

Shock Resistance
Approx. 1000 m/s2 (contact), 300 m/s2 (free state)

Conformity
IEC 60947-5-1

TEKNIC NG1HS 510L024M Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About TEKNIC NG1HS 510L024M

The TEKNIC NG1HS 510L024M is a precision-engineered limit switch designed for reliable position sensing and control in industrial automation systems. Built with Teknics trusted quality standards, it ensures long service life and consistent performance in demanding environments.

Precision Sensing for Industrial Environments

The TEKNIC NG1HS 510L024M delivers high-accuracy position sensing, ideal for rigorous settings such as CNC machines and conveyor systems. Its spring plunger actuator ensures precise mechanical-to-electrical signal conversion, essential for automation standards. Designed with a rugged body and long operational life, it withstands harsh conditions while maintaining stable performance for automated processes.

Reliable Durability & Weatherproof Design

Engineered with reinforced thermoplastic and metal housing, this device provides exceptional durability along with an IP67 ingress protection rating. It resists dust, water, vibration, and mechanical shock, making it suitable for outdoor or hostile industrial environments. Its long life of over 10 million actuations minimizes maintenance and ensures continual operation in demanding applications.

FAQ's of TEKNIC NG1HS 510L024M:

Q: How is the TEKNIC NG1HS 510L024M limit switch typically used in automation systems?

A: This limit switch is commonly used for position sensing and as a safety interlock in CNC machines, automation panels, and conveyor systems. It translates precise plunger motion into an electrical contact change, enabling reliable on/off signaling within control circuits.

Q: What benefits does the spring plunger actuator provide in this model?

A: The spring plunger actuator ensures high sensitivity and low actuation force, enabling accurate and rapid response to even slight mechanical movements-ideal for applications that demand high responsiveness and reliability.

Q: Where can I mount the NG1HS 510L024M limit switch for optimal performance?

A: The switch is designed for both surface and panel mounting. These flexible options allow for straightforward integration into control enclosures, machine panels, or directly onto industrial equipment frames.

Q: What is the operational process of the TEKNIC NG1HS 510L024M?

A: When the plunger is mechanically actuated, the device's snap-action mechanism quickly shifts its internal contacts, providing instant SPDT (1NO + 1NC) output. This action generates a reliable electrical signal, detecting position or status changes in equipment.

Q: When should I consider replacing this switch in my automation setup?

A: With an operational life of over 10 million cycles, the NG1HS 510L024M is built for longevity and rarely needs replacement under normal conditions. Consider replacement only if accidental damage occurs or operational anomalies are detected through periodic maintenance checks.

Q: What advantages does the reinforced thermoplastic/metal enclosure offer?

A: This hybrid construction delivers both mechanical strength and corrosion resistance. It helps shield internal components from dust, water, and impact, ensuring steady operation in harsh manufacturing and outdoor environments.

Q: What makes this limit switch suitable for use in Indian industrial sectors?

A: Its robust build, adherence to IEC 60947-5-1 standards, weatherproof rating, and adaptability to 24V input make it a reliable choice for diverse Indian automation applications, supporting manufacturers, distributors, suppliers, and service providers across the sector.
