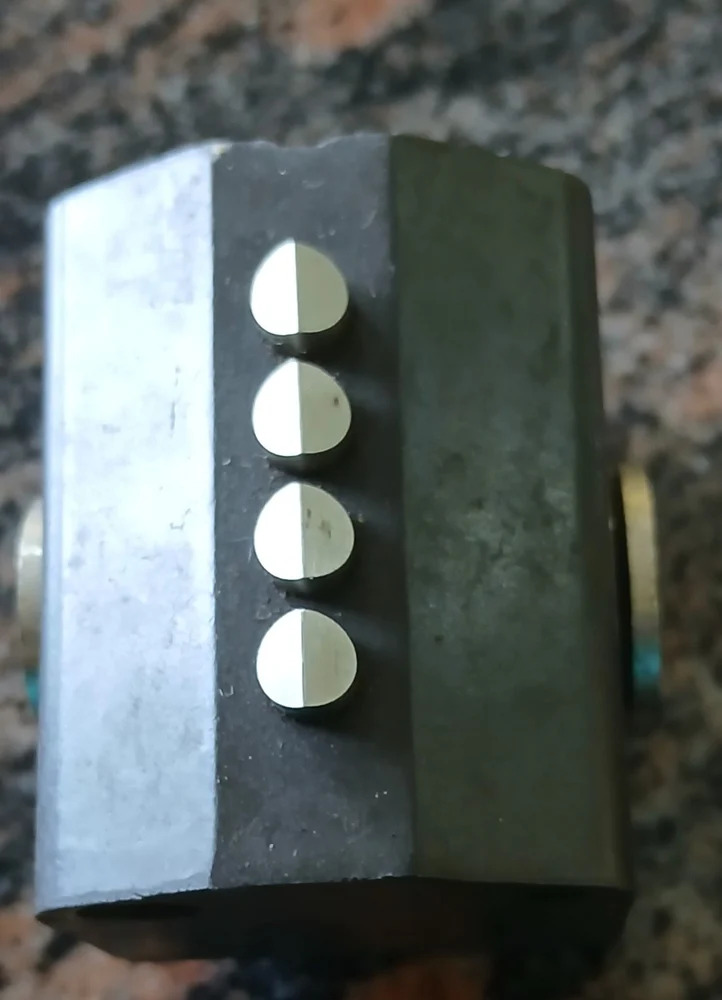

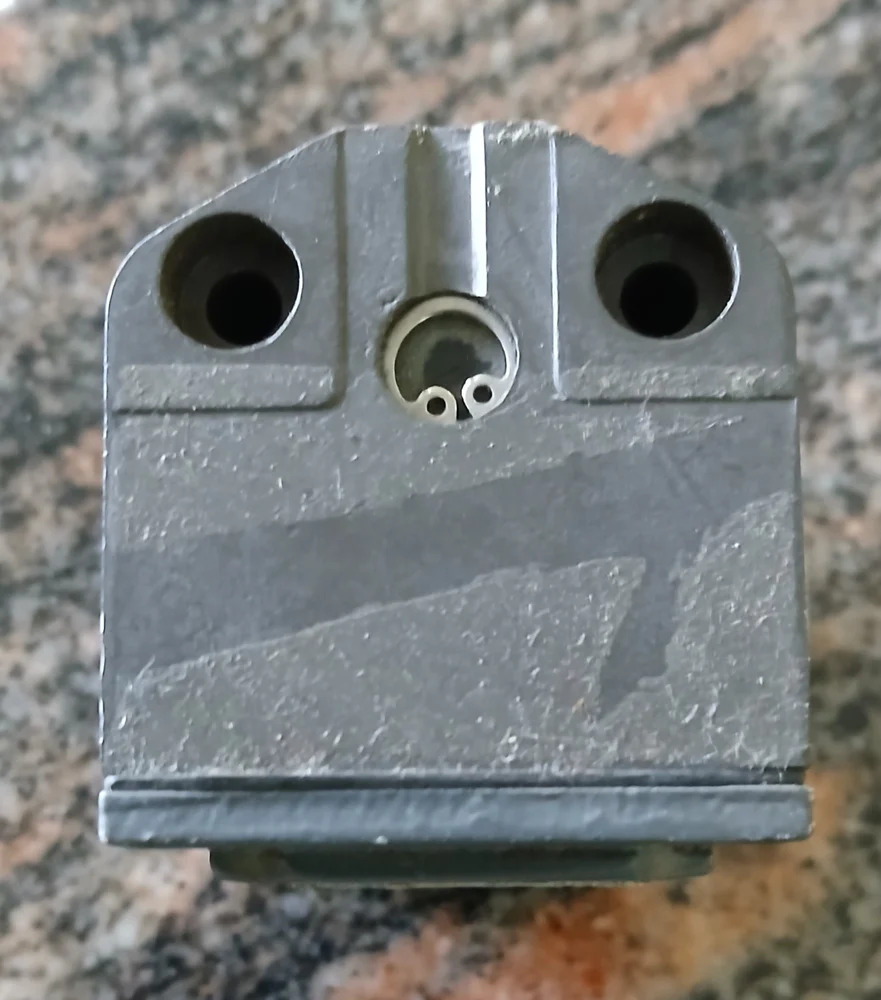

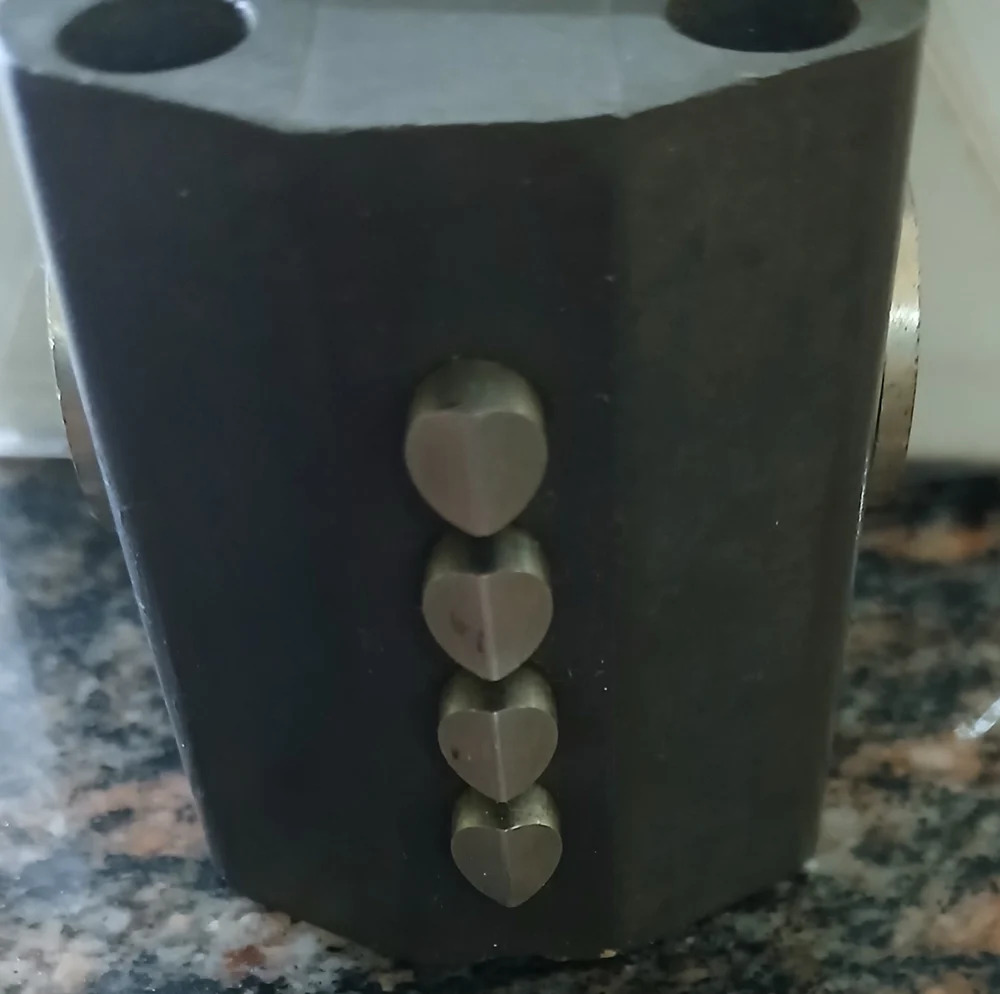

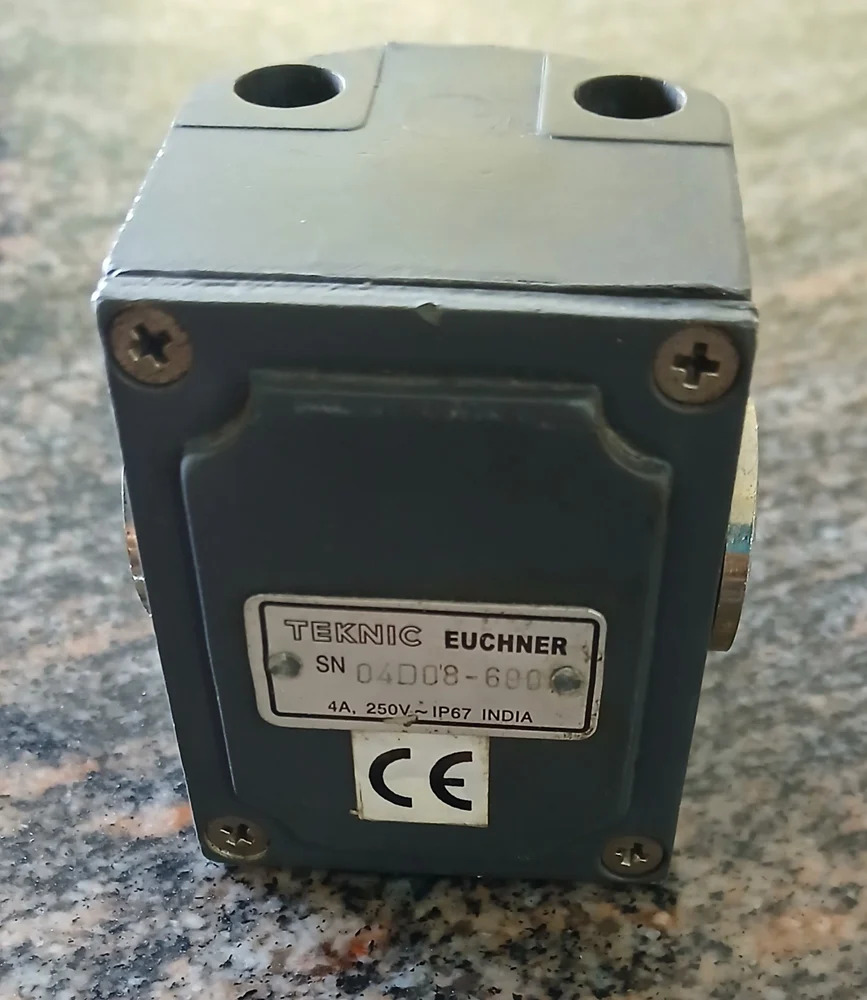

TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES

Name: TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES
Brand: MONIKA ENGINEERS
Price: 6170.0 INR
Availability: InStock

Price 6170.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES Specification

Circuit Type
SPDT

Number of Module
Single

Response Time
20 ms

Mechanical Life
10,000,000 operations

Temperature Range
-25C to +70C

Rated Voltage
250V AC

Finish Type
Matte

Protection Level
IP67

Automation Grade
Automatic

Max. Current
10A

Product Type
Limit Switch

Material
Plastic and Metal

Insulation Resistance
100 M (at 500 VDC)

Contact Resistance
25 m (initial)

Max. Voltage
500V AC/DC

Operating Temperature
-25C to +70C

Stoke
10 mm

Size
Standard

Color
Black & Silver

Weight
150g

Mounting Type
Panel Mount

Current Rating
10A

No Of Poles
1 Pole

Actuator Type
Plunger (Spring Return)

Contact Type
Snap Action

Electrical Life
500,000 operations

Housing Protection
Double Insulation

Switching Speed
0.05 m/s to 2 m/s

Standards Compliance
IEC 60947-5-1

Terminal Type
Screw Terminal

TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES

The SN04D08-600M is part of Teknic Euchner's TL Series of precision limit switches. It is specifically engineered for machine tool industries and other automation applications requiring high reliability and precision

Robust Design and Reliable Performance

Built with a combination of plastic and metal materials, the TEKNIC EUCHNER SN04D08600M ensures reliable operation even in challenging industrial settings. Its double insulation and IP67 protection level safeguard against dust and water, while the sturdy plunger actuator with spring return delivers consistent actuation.

Engineered for Versatility and Safety

Supporting a broad range of operating voltages (up to 500V AC/DC) and currents (up to 10A), this limit switch delivers versatile performance. Compliance with IEC 60947-5-1 guarantees adherence to global safety standards. Screw terminals offer secure connections, and the matte finish enhances its industrial visual appeal.

Applications Across Numerous Industries

Ideal for use in automated machinery, conveyor systems, and control panels, the SN04D08600M can be implemented in both new installations and equipment upgrades. With a rapid response time of 20 ms and a reliable SPDT circuit configuration, it ensures dependable switching in critical operations.

FAQ's of TEKNIC EUCHNER SN04D08600M LIMIT SWITCHES:

Q: How does the plunger (spring return) actuator of the TEKNIC EUCHNER SN04D08600M function in industrial automation?

A: The plunger actuator is designed to return to its original position after actuation due to the integrated spring mechanism. This allows for precise and repeatable switching operations, making it ideal for applications that require consistent limit detection.

Q: What are the benefits of the double insulation and IP67 protection features?

A: Double insulation offers enhanced electrical protection by preventing accidental contact with live parts, while the IP67 rating ensures the switch is dust-tight and protected against temporary immersion in water, making it suitable for harsh and demanding environments.

Q: Where can the TEKNIC EUCHNER SN04D08600M limit switch be installed?

A: The switch is designed for panel mounting in industrial automation systems, such as conveyor belts, machinery interlocks, and control panels. It can be used in manufacturing, packaging, and process industries that require reliable limit sensing.

Q: What is the process for wiring the SN04D08600M limit switch?

A: The switch features easy-to-use screw terminals that accommodate standard wiring methods. Simply connect the required wires to the terminals as per the wiring diagram and ensure all connections are secure for optimal performance and safety.

Q: How does the SN04D08600M's snap action contact improve usage in automation circuits?

A: Snap action contacts provide quick, precise switching with minimal contact bounce, thus improving response time and reducing wear. This ensures long-lasting performance-especially important in high-cycle or fast-moving automation processes.

Q: When should the SN04D08600M be considered over other switch types?

A: This limit switch should be considered when you require high reliability, extended mechanical life (up to 10 million operations), and resistance to rugged environmental conditions. Its standard size and SPDT circuit type make it versatile for many applications.

Q: What is the advantage of its compliance with IEC 60947-5-1 standards?

A: Compliance with IEC 60947-5-1 signifies that the switch meets international requirements for low-voltage switchgear and controlgear, assuring users of safety, compatibility, and quality in industrial and commercial installations.
