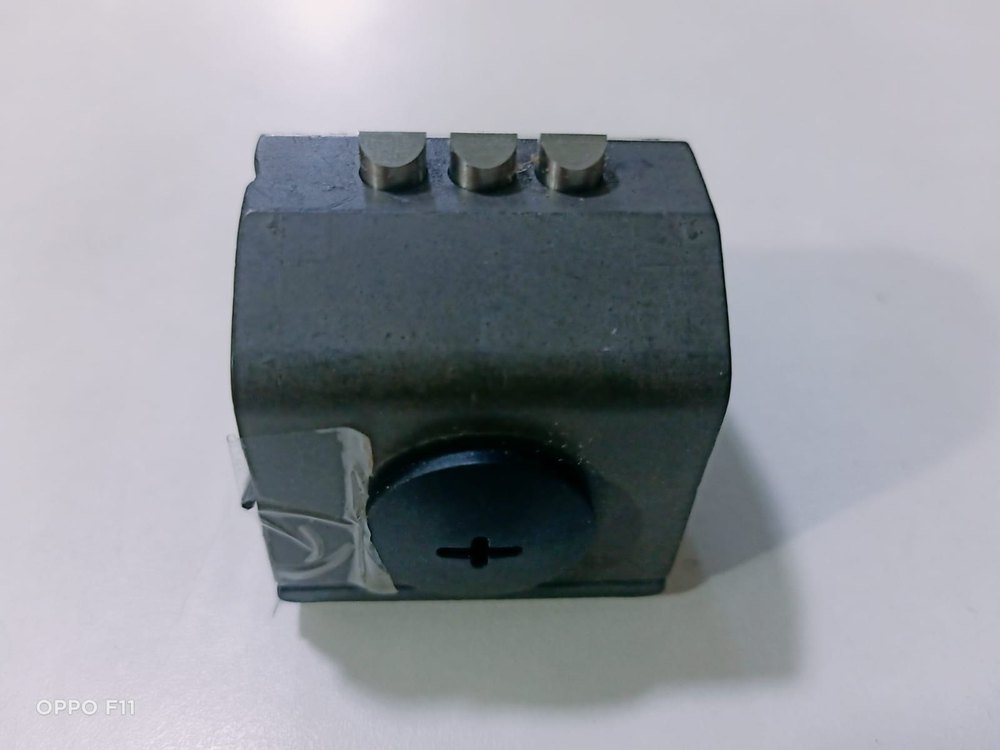

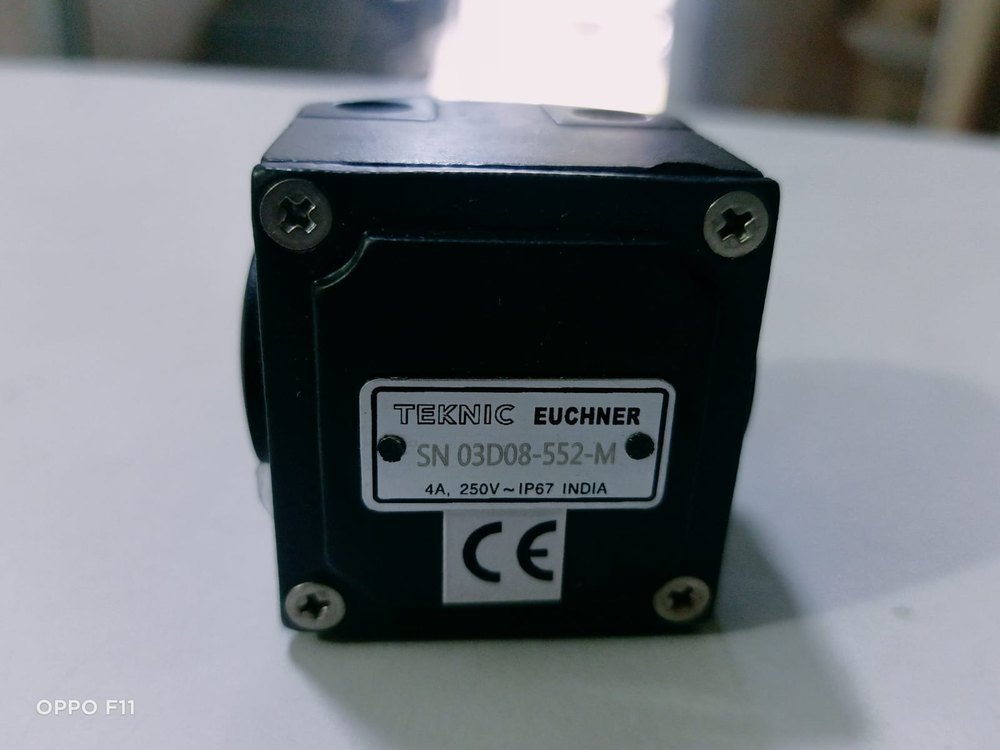

TEKNIC EUCHNER SN03D08552M LIMIT SWITCH

Name: TEKNIC EUCHNER SN03D08552M LIMIT SWITCH
Brand: MONIKA ENGINEERS
Price: 7375.0 INR
Availability: InStock

Price 7375.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TEKNIC EUCHNER SN03D08552M LIMIT SWITCH Specification

Finish Type
Matte Finish

Temperature Range
-25C to +70C

Number of Module
Single

Protection Level
IP67

Rated Voltage
240V AC

Circuit Type
SPDT

Mechanical Life
>10 Million Operations

Max. Current
10A

Response Time
10 ms

Automation Grade
Automatic

Product Type
Limit Switch

Material
Engineering Plastic and Metal

Insulation Resistance
100 M (at 500V DC)

Contact Resistance
25 m

Max. Voltage
400V AC

Operating Temperature
-25C to +70C

Stoke
13 mm

Size
Standard Compact

Color
Black & Grey

Weight
Approx. 120g

Mounting Type
Panel/Surface Mount

Current Rating
10A

No Of Poles
1

Actuator Type
Plunger

Terminals
Screw Terminals

Model Number
SN03D08552M

Electrical Life
0.5 Million Operations at Rated Load

Contact Type
Snap Action

Shock Resistance
30G

TEKNIC EUCHNER SN03D08552M LIMIT SWITCH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About TEKNIC EUCHNER SN03D08552M LIMIT SWITCH

The SN03D08552M limit switch is part of Teknic Euchners range of precision single and multiple limit switches, manufactured with German technology and supported by TEKNIC India. It is designed for high-precision control and positioning in industrial automation and machinery applications Teknic Euchner+1. Its snap-action mechanism ensures that the switching speed remains mostly independent of actuating speed, providing consistent performance Teknic Euchner.

Superior Durability and Performance

Built with engineering plastic and metal, this compact limit switch stands out in terms of ruggedness and dependability. Its shock resistance up to 30G and superior insulation deliver safety in demanding industrial environments, minimizing maintenance and maximizing operational continuity.

Easy Mounting and Versatile Application

The SN03D08552M supports panel or surface mounting, offering flexibility for integration across various machinery and automation systems. Its screw terminals guarantee firm connections, making it the preferred choice for both new installations and replacement needs.

FAQ's of TEKNIC EUCHNER SN03D08552M LIMIT SWITCH:

Q: How does the snap action mechanism in the SN03D08552M limit switch enhance performance?

A: The snap action mechanism ensures rapid and decisive switching, providing reliable contact under fast operation. This minimizes wear and reduces contact bounce, increasing the reliability and lifespan of the switch in high-cycle applications.

Q: What environments are suitable for installing the TEKNIC EUCHNER SN03D08552M limit switch?

A: This limit switch is ideal for environments requiring dust and water resistance, thanks to its IP67 rating. It performs reliably in standard industrial settings with temperatures from -25C to +70C and offers robust resistance to shocks up to 30G.

Q: Where is the SN03D08552M typically used?

A: The switch is widely used in automation systems, machinery safety interlocks, conveyor systems, and control panels. Its compact design and reliable operation make it a suitable choice for panel or surface mounting in various industrial sectors.

Q: What benefits does the SN03D08552M limit switch provide for automation?

A: Key advantages include its long mechanical and electrical life, robust housing, quick response time of 10 ms, and reliable SPDT contact configuration. These features reduce downtime and maintenance costs while ensuring precise operational control.

Q: What process should be followed to install and wire the limit switch?

A: Mount the switch to the desired panel or surface using standard fasteners. Connect the wiring to the screw terminals according to the applicable circuit diagram, ensuring all connections are secure and in compliance with rated voltage and current specifications.

Q: How does the protection level of IP67 benefit users?

A: IP67 protection means the switch is completely dust-tight and protected against temporary immersion in water, making it highly reliable for use in harsh or unpredictable environments where such exposure may occur.

Q: When should you consider using the SN03D08552M over other types of limit switches?

A: Choose the SN03D08552M when your application requires a compact, durable limit switch with high cycle life, robust environmental protection, and compatibility with panels or surfaces-particularly in industrial environments exposed to dust, water, or vibration.
