TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS

Send Inquiry

Request To Call Back

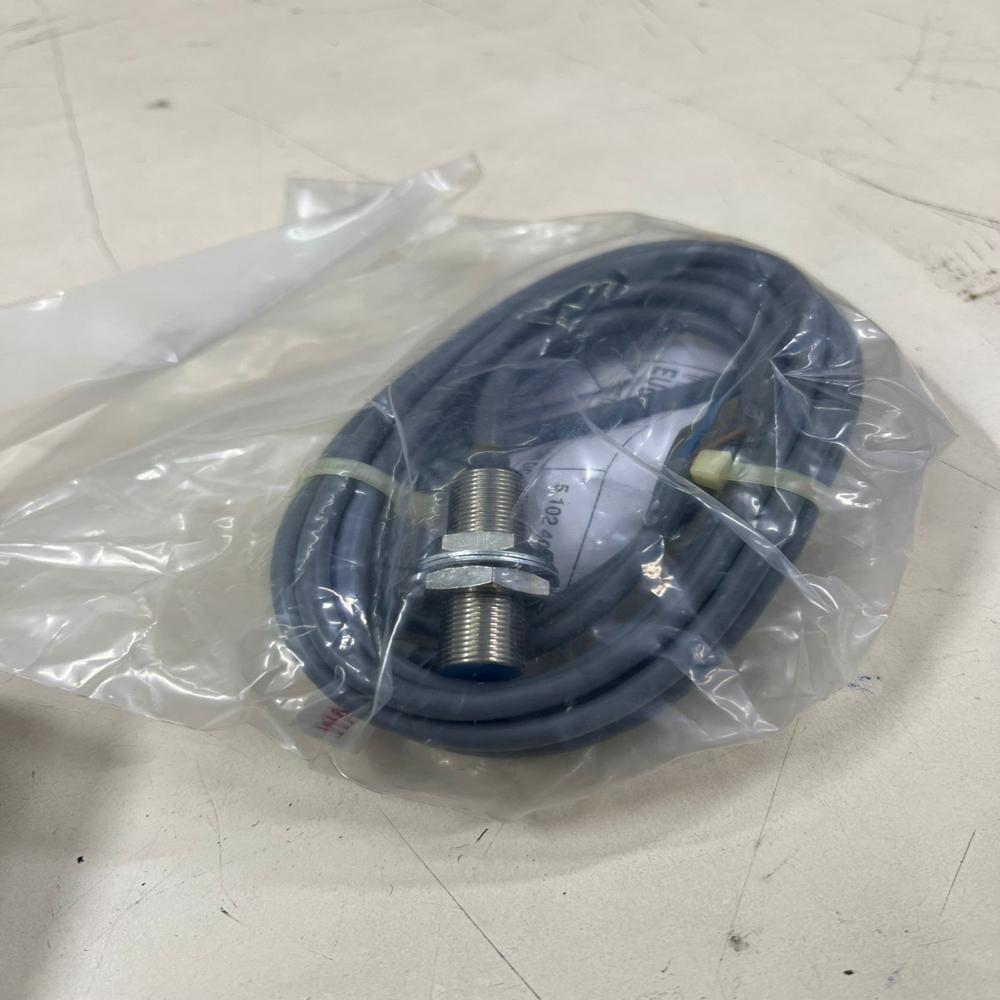

TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS

Name: TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS
Brand: MONIKA ENGINEERS
Price: 765.0 INR
Availability: InStock

Price 765.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS Specification

Interface
3-wire

Signal Type
Digital

Response Time
<2 ms

Sensitivity
Adjustable (Factory Set)

Power Consumption
<10mA (No Load)

Application
Automation Systems, Robotics, Conveyor systems

Operating Temperature
-25C to +70C

IP Rating
IP67

Cable Length
2 meters

Mounting Type
Flush Mount

Wireless
No

Features
Short-circuit protection, Reverse polarity protection, LED status indicator

Sensor Type
Inductive Proximity Sensor

Measurement Range
4mm Sensing Distance

Product Type
Proximity Sensor

Material
Metal Housing, Engineering Plastic

Input
24V DC

Output
PNP Normally Open (NO)

Function
Non-contact object detection

Usage
Industrial automation, object position sensing

Accuracy
High

Resolution
Precise switching

Voltage
10-30V DC

Weight
Approx. 80g

Housing Dimensions
12mm diameter, cylindrical

Connection Type
Cable with M4 connector

Operating Humidity
35-95% RH

Switching Frequency
1 kHz

Color
Metallic Grey / Black

Maximum Load Current
200mA

Protection
Overload and Surge Protection

TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS

Model Code: EGL12X04AP024SEM4L Sensor Type: Inductive proximity sensor (non-contact detection of metallic objects) Housing Diameter: M12 (12 mm threaded cylindrical body) Housing Material: Brass, nickel-plated Sensing Distance: 4 mm (flush mounting type) Operating Voltage: 1030 V DC (24 V typical) Output Type: PNP transistor Switching Function: Normally Open (NO) Protection Rating: IP67 (dust-tight, water immersion up to 1 m) Connection Type: M12 connector Switching Frequency: 500 Hz

Premium Industrial Reliability

Built for harsh environments, the EGL12X04AP024SEM4L features a rugged metallic and engineering plastic body with IP67 ingress protection, ensuring dependable operation in high-moisture and dusty conditions. Overload, surge, and reverse polarity protections further enhance its resilience, protecting both the sensor and connected systems.

High Performance and Precision

This sensor provides high accuracy and precise switching with a 1 kHz frequency and <2 ms response time. Its 4mm sensing range and factory-set sensitivity guarantee stable, reliable object position detection-crucial for high-speed automation, robotics, and conveyor installations.

Simple Installation and Operation

With a flush-mount cylindrical design, 2-meter cable, and M4 connector, installation is quick and straightforward. The built-in LED status indicator streamlines setup and diagnostics. Its 3-wire PNP output integrates effortlessly with diverse industrial control systems.

FAQ's of TEKNIC EUCHNER EGL12X04AP024SEM4L PROXIMITY SENSORS:

Q: How do I install the TEKNIC EUCHNER EGL12X04AP024SEM4L proximity sensor?

A: Installation is straightforward due to its flush-mount cylindrical design. Simply secure the 12mm diameter housing into a compatible fixture and connect the 2-meter cable with M4 connector to your control circuit. Follow standard wiring and mounting procedures, ensuring proper grounding for maximum reliability.

Q: What environments is this proximity sensor suitable for?

A: With an IP67 rating and operating range of -25C to +70C and 35-95% relative humidity, the EGL12X04AP024SEM4L is ideal for industrial applications exposed to dust, water, or challenging temperature fluctuations. Its robust construction and protections make it perfect for factory automation, robotics, and conveyor systems.

Q: Where can this proximity sensor be used effectively?

A: The sensor is highly effective in automation systems, robotics, conveyor lines, and object position sensing tasks, especially where high accuracy and reliability are required. It is suitable for use in factories, manufacturing plants, and industrial automation setups in India and beyond.

Q: What benefits does the EGL12X04AP024SEM4L offer for automation applications?

A: This sensor offers precise non-contact object detection, fast response (<2 ms), and high switching frequency (1 kHz), boosting efficiency and safety in automated environments. Its overload/short-circuit protection and visual LED status indicator help minimize downtime and maintenance costs.

Q: How does the sensor protect connected equipment and itself?

A: The proximity sensor features comprehensive protection mechanisms, such as overload and surge protection, reverse polarity, and short-circuit safeguards. These ensure both the sensor and downstream devices remain protected from electrical faults, enhancing operational longevity.

Q: What is the sensor's typical output and how does it interface with control systems?

A: This model provides a digital, PNP Normally Open (NO) output with a 3-wire interface, making integration into standard industrial PLCs and controllers easy. The LED status indicator provides clear visual feedback on sensor operation.
